Hose Crimping Machines Manufacturer

AC 135 :


  • We are Manufacturer, Supplier, Exporter of Hose Crimping Machines, Vertical Hose Crimping Machines, Horizontal Hose Crimping Machines, Hydraulic Hose Crimping Machines, Industrial Hose Crimping Machines and our set up is situated in Pune, Maharashtra, India.

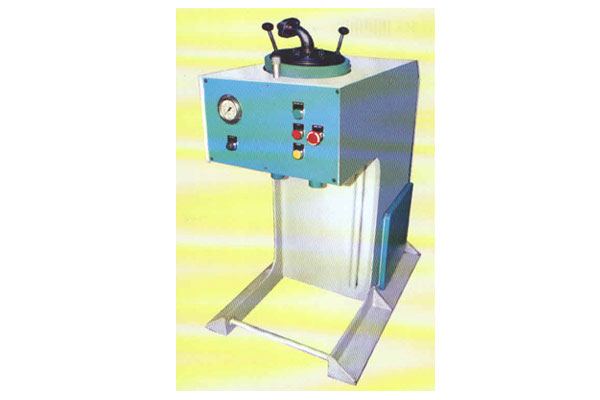

    The Hose Crimping Machine ANISH AC-135 is Suited for small and medium batch production of high pressure hose assemblies.
  • Hose pressing force enables the working range for SAE-R13 Hoses upto 1 1/2" I.D. and SAE R2 Hoses upto 2" I.D. The maximum sleeve dia being 76mm (prior to crimping).

Essential Accessories :

  •  Standard Dia Sets : Dia - 17, Dia - 20, Dia - 24, Dia - 28, Dia - 32, Dia - 40, Dia - 50, Dia - 57, Dia - 71.

TECHNICAL DATA :

MODEL AC - 135
Pressing Force (Max) 3,00,000 Kg. effective
Electric Motor 2 HP 440V, AC, 50 HZ. 1440 RPM
Radial Displacement 4 mm or (8 mm on Dia)
Opening Diameter 24 mm + Die Diameter
Pressing Range SAE-R13 11/2"1. D. SAE R-2, 2"1. D
No. of Dies per set 8


Special Features :

  •   Indigenously developed
  •   Suitable for all international swaged fittings
  •   High pressing force
  •   Quick gripping mannual operation
  •   Radially self aligning tooling
  •   Depth setting micrometer for 0.1mm accuracy
  •   Fast remounting and easy handling

OPERATION :

  •   Plug in the metal clad provided.
  •   Put on the selector switch.

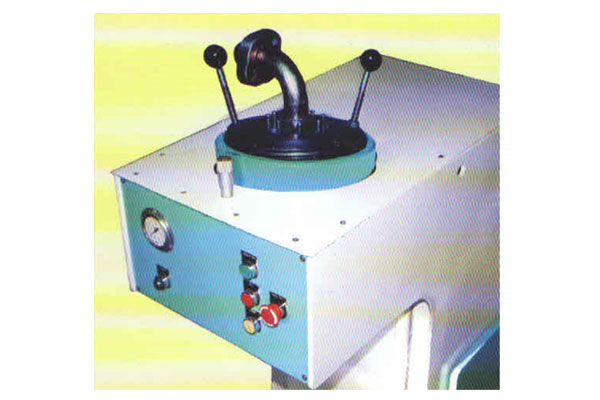

  •   Hold the hose to be crimped indside the die magazine
  •   Tighten the trust collar by rotating clockwise till the hose.
  •   Put on the motor by pressing switch 'ON'.

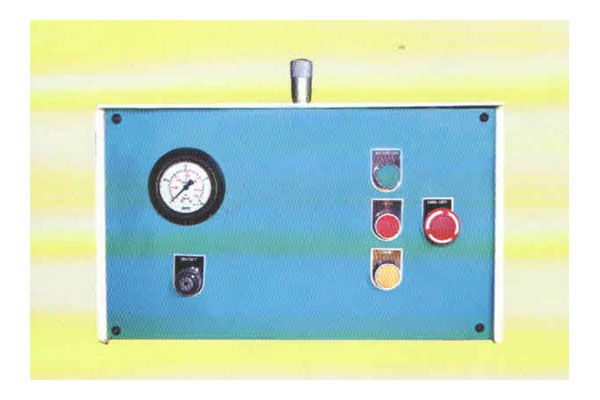

  •   Set the depth of crimp with micrometer while using inch crimping switch 'INCH.
  •   For production use switch 'AUTO'
  •   Red mushroom switch offers "EMERGENCY OFF'


Hose Crimping
Hose Crimping
Hose Crimping


Special / Optional Accessories :

  •   Foot Switch for pre-set crimping cycle
  •   Depth Stooper
  •   Special Die Sets
    • Dia - 9, Dia - 12, Dia - 14, Dia - 36, Dia - 44, Dia - 47, Dia - 54, Dia - 62

DIE SELECTION CHART :

  •   Figures marked in indicate Die size; and range shown against each Die size indicates max. & min. cap O.D. (after crimping) for the respective Die.
