Vertical Hose Crimping Machines Manufacturer

Vertical Hose Crimping Machines :


    We are Manufacturer, Supplier, Exporter of Vertical Hose Crimping Machines, Automatic Vertical Hose Crimping Machines, Automatic Crimping Machines and our set up is situated in Pune, Maharashtra, India.

  •   The Hose Crimping Machine ANISH Vertical Hose Crimping Machines is suited for small and medium batch production of high pressure hose assemblies.
  •   Hose Pressing force enables the working range for SAE-R-9 Hoses upto 1" I. D. and SAE R2 Hoses upto 2" I. D. The maximum sleeve dia. being 76mm (before crimping)

SPECIAL FEATURES :

  •   Indigenously developed High pressing force.
  •   Quick gripping manual operation Radially sell alligning tooling.
  •   Depth setting micrometer for 0.1 mm accuracy Fast remounting and easy handling.


TECHNICAL SPECIFICATIONS :

Pressing Force 2,50,000 kg. effective.
Electric Motor 2HP,1440 RPM, 1Ph,230V,50Hz
Opening Diameter 24mm + Die Diameter
Pressing Range SAE-R9 1"l.D. SAE R-2, 2" l.D.
No. of Dies per set 8
Bore 90mm

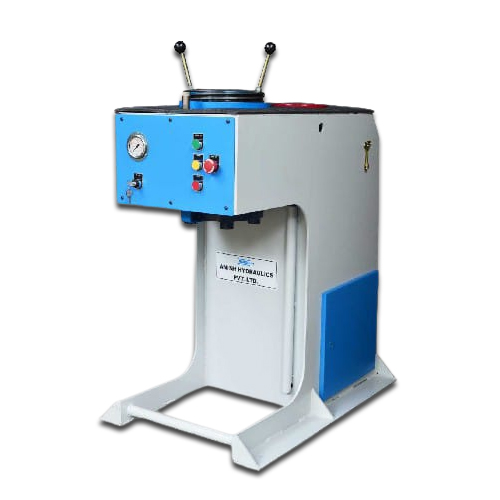

vertical hose crimping machine

Essential Accessories :

Standard Die Sets :

  •   Dia - 17, Dia - 20, Dia - 24, Dia - 28
  •   Dia - 32, Dia - 40, Dia - 50, Dia - 57, Dia - 71
